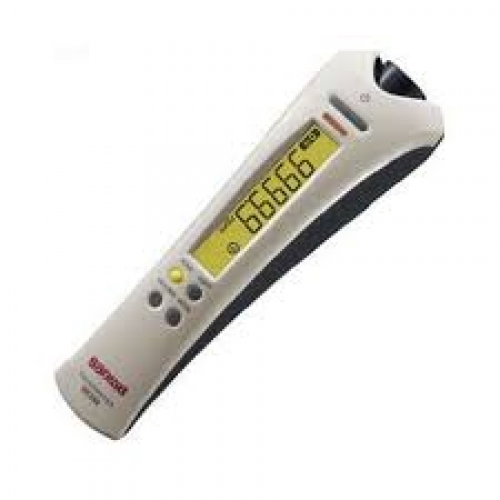

Words Digital Tachometer is stemmed from two Greek words: tachos suggests “rate” and also metron indicates “to measure”. It services the concept of a Digital Tachometer generator, which means when a motor is operated as a generator; it generates the voltage according to the velocity of the shaft. It is also called revolution-counter, and also its operating concept can be electro-magnetic, optical-based or digital. Power, precision, RPM variety, dimensions and also display are the requirements of a Digital Tachometer. Digital Tachometers can be analog or electronic showing meters; nevertheless, this write-up focuses only on the electronic Tachometers.
Digital Tachometer Types
The Digital Tachometer is identified into 4 types based on the data purchase and also measurement methods.
- Get in touch with type
- Non-Contact type
- Time dimension
- Regularity dimension
The Digital Tachometer counters on automobiles, aircraft, as well as other vehicles reveal the price of turning of the engine’s crankshaft, as well as typically have markings showing a risk-free variety of turning rates. This can assist the motorist in choosing proper throttle and also equipment settings for the driving problems. Long term usage at high speeds might cause poor lubrication, getting too hot (going beyond capability of the air conditioning system), exceeding speed capability of sub-parts of the engine (as an example spring retracted valves) thus creating too much wear or irreversible damage or failure of engines. This is more relevant to hand-operated transmissions than to automatics. On analogue Digital Tachometers, rates over maximum safe operating speed are generally shown by a location of the gauge noted in red, triggering the expression of “redlining” an engine– revving the engine approximately the optimum risk-free restriction. The red area is unnecessary on the majority of modern-day cars, given that their engines typically have a transformation limiter which digitally restricts engine speed to prevent damage. Diesel engines with typical mechanical injector systems have an integral governor which stops over-speeding the engine, so the Digital Tachometers in automobiles and equipment fitted with such engines occasionally lack a redline.
Applications in Industries
In cars such as vehicles and also tractors, the Digital Tachometer typically has other markings, generally an eco-friendly arc showing the rate variety in which the engine produces optimum torque, which is of prime passion to drivers of such automobiles. Tractors fitted with a power take-off (PTO) system have Digital Tachometers revealing the engine speed required to revolve the PTO at the standardized rate needed by the majority of PTO-driven applies. The Digital Tachometer, in numerous nations, tractors are required to have a speedometer for usage on a roadway. To save suitable a second dial, the lorry’s Digital Tachometer is often noted with a 2nd range in units of speed. This scale is only accurate in a particular gear, yet since several tractors just have one equipment that is functional for use on-road, this suffices. Tractors with multiple ‘roadway equipment’s’ typically have Digital Tachometers with more than one rate scale. Aircraft Digital Tachometers have an environment-friendly arc revealing the engine’s developed travelling speed range.
The Digital Tachometer In older cars, the Digital Tachometer is driven by the RMS voltage waves from the reduced tension (LT) side of the ignition coil, while on others (as well as almost all diesel motors, which have no ignition system) engine rate is figured out by the regularity from the alternator Digital Tachometer result. This is from a special connection called an “A/C tap” which is a connection to one of the stator’s coil output, before the rectifier. Digital Tachometers driven by a turning cord from a drive system fitted to the engine (typically on the camshaft) exist– usually on basic diesel-engine machinery with basic or no electric systems. On current EMS found on modern vehicles, the signal for the Digital Tachometer is normally produced from an ECU which acquires the info from either the crankshaft or camshaft speed sensor.
