SMD Rework Station can be extremely handy. As pointed out over, they are a crucial tool when it pertains to remodeling a board. The term revamp just means you are redecorating or fixing an already reflowed board, and it is a term typically utilized in the electronics globe. Simply consider it as doing any type of work to the board that wasn’t associated with the actual production procedure. Right here are some common rework scenarios:
The SMD Rework Station (Surface area install tool) maker is a really standard and most baby room device for all electronic and mobile fixing technicians. The SMD Maker is basically used for mounting as well as remounting of the electronic component from the PCB boards.

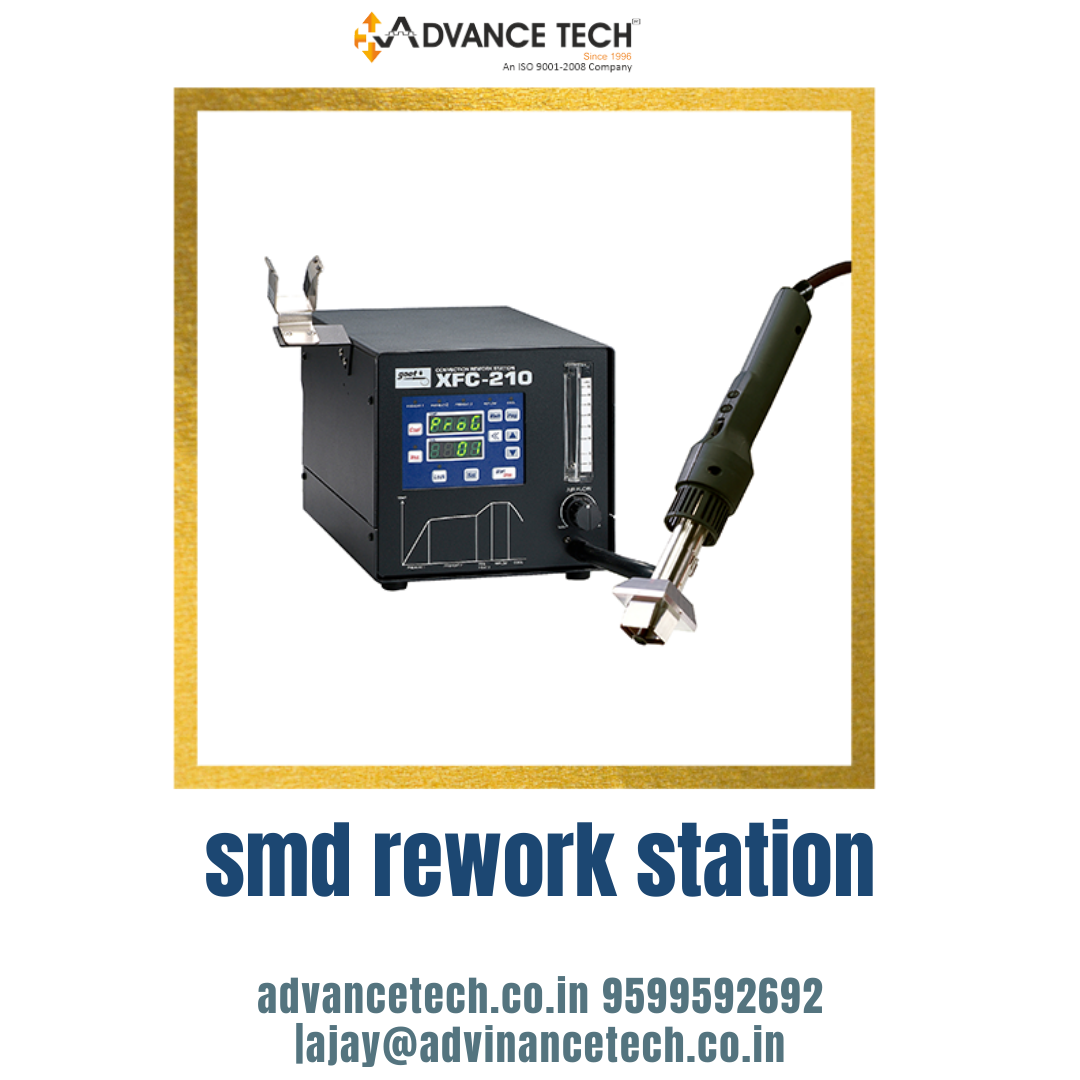

In any SMD Rework Station or hot air blower, there are two control handles. One control knob is to manage circulation of Hot Air while the other control knob is utilized to regulate temperature level. Hot air streams via nozzle connected to the manager. This hot air aids to thaw solder paste below the IC. It is utilized as BGA Rework Terminal making use of some additional tools and set-up such as a PCB Holder, Stand for the Rework Terminal and also a Pre-heater to warm from the bottom.
There are numerous brand names SMD maker is readily available on the market. These remain in different cost varieties and also top quality variants. It is rather tough to make a decision on the Top SMD Rework Station. However before buying an SMD you should do a great deal of study and individual experience
in digital fixing.
Components that have actually been put inaccurately (backwards, moved x degrees off). These consist of ICs, diodes, some capacitors, ports, etc. This is when a component (usually a resistor or capacitor) reflows just on one side. The part usually sticks straight up resembling a tombstone. This resembles a tombstone except the components may not be sticking strait up, making it more difficult to see the connection that is not being made. Often, during the IC production process, mistakes can emerge as well as go unnoticed. These ICs are after that put on completely excellent PCBs. SMD Rework Station is wonderful for changing these bitter pills.
