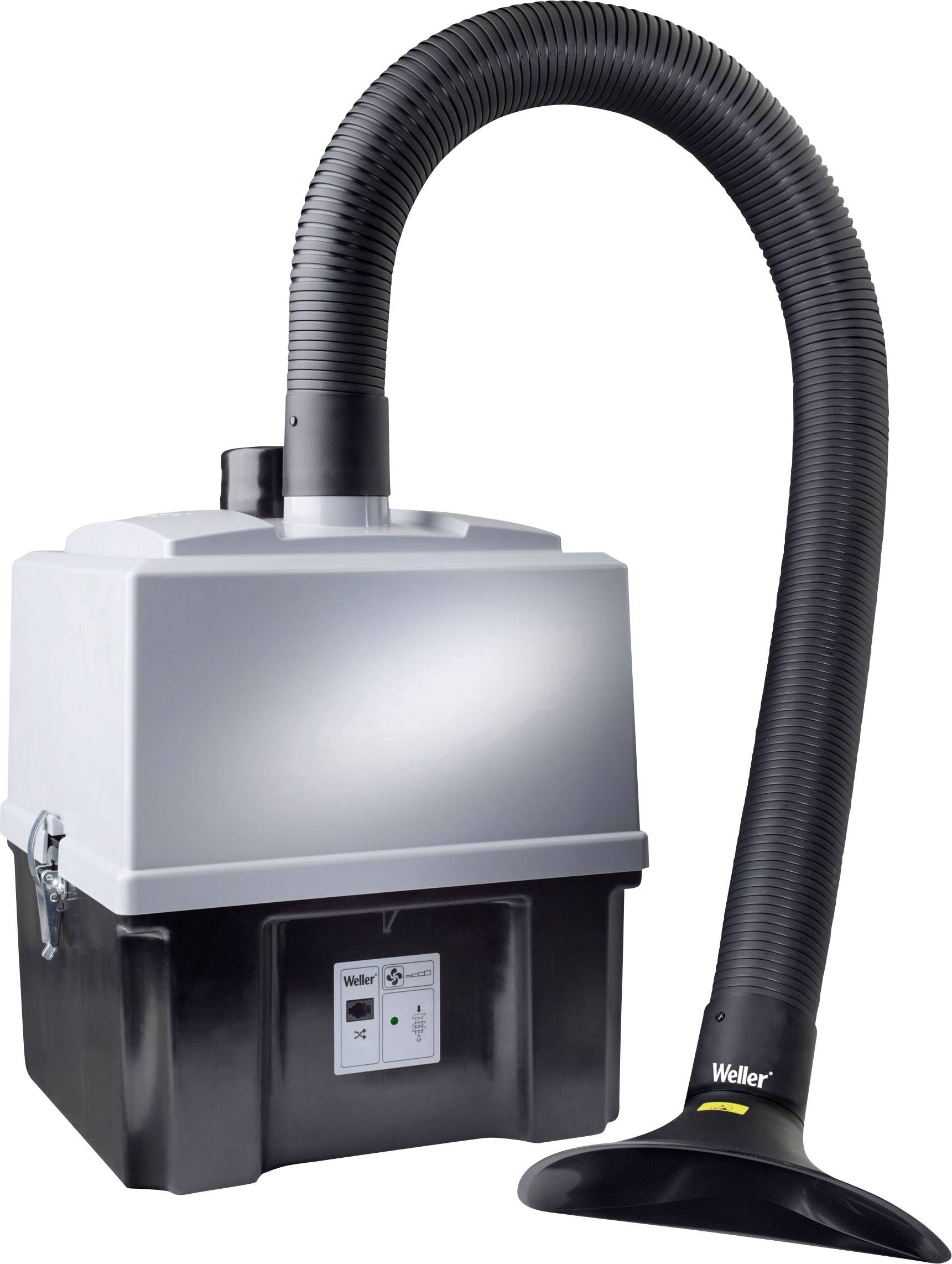

Soldering Fume Extractor
A solder fume extractor is a small box that collects and filters the fumes from the area of operation. The device is powered by an external power source or a built-in battery system and features an activated carbon filter to trap the vapors. During soldering, metal vapors are formed as low melting point alloys are joined together. Other contaminants in the flux include resin acid particles and other flammable compounds. These vapors can lead to long-term discomfort and even health problems.
As with any machine, the size of the solder fume extractor is an important factor to consider. Your workspace is going to determine the size of the unit you need. Depending on the size of the workstation, you may need to select a larger or smaller unit. However, larger units aren’t necessarily more powerful. If you’re working with multiple operators, make sure the unit has enough room to accommodate all of them.
In addition to size, another important factor to consider when choosing a solder fume extractor is the effectiveness. As the air in the workspace contains 99.5% particles and only 0.5% gases, the solder fume can cause serious respiratory problems. This can result in asthma, skin problems, and congestion problems, which require proper treatment. To solve this problem, you need to use a solution that can remove the harmful gases from your workspace.
Soldering Fume Absorber
A soldering fume absorber is a portable, air-purifying system that captures the toxic gases and gaseous matter emitted by a soldering iron. These fumes can cause respiratory issues, skin irritation, and even cancer. The respirable gasses that are released during soldering can even be toxic enough to clog the airways. OSHA has set permissible exposure limits for various hazardous materials and substances. A fume absorber will help you meet these PELs.
A standard FUMEX solder fume absorber has an activated carbon filter that catches up to 80 percent of toxic gases. The device has a low profile design and is operated by an external power source or a built-in battery system. Its filtration system is easy to replace and consists of foam and a high-quality filter. This carbon filter has an ESD-safe rating and is easy to clean.
The FUMEX is a convenient and affordable solution for your soldering needs. It is portable and has a low noise level. Its compact design and built-in battery system allow you to easily use it. It has a carbon filter that is designed to absorb up to 80 percent of fumes and dust. The carbon filters are a good fit for the FUMEX because they are reusable and are easy to replace.
Whether you’re new to electronics or a seasoned professional, a soldering station will come in handy. A good station will heat up to a maximum temperature of 572 degrees Fahrenheit in about 15 seconds. Other advantages of a good soldering station include its large power, adjustable temperature range, and intelligent functions. These features are all important for soldering, and you should make sure you have a good one before you begin your next project.
The temperature of a soldering station can be easily adjusted with the help of temperature sensors. This feature prevents overheating of the soldering tip. This can lead to a damaged electronic component, resulting in a premature tip change. Using a digital soldering station means avoiding these issues. These models use a PID regulator and a microprocessor to control power and temperature. Most of the units also have a grounded base and a fuse for added safety.
A soldering station must offer temperature versatility. A single-temperature station may not be flexible enough for some tasks. A wide temperature range increases versatility. It is also helpful to have a thermostat so that you can control the temperature. A good station should also have a stand for ease of use. The stand should also be adjustable. The hot air gun can be adjusted to a maximum of 896 degrees Fahrenheit. If you plan on using the hot air gun, a soldering station should be able to provide the proper support.
Robotic Soldering Machine
The robotic soldering machine has several advantages. The soldering process can be automated, and the components can be handled easily and quickly. The robot also uses a high-quality thermal feedback system and a powerful 150-watt power supply. Its advanced features allow it to adjust the speed and temperature and even use nitrogen systems for the most challenging soldering applications. With its single or double platforms, the robotic soldering machine is suitable for both high volume and low-volume production.
Unlike human operators, a robotic soldering machine can perform multiple tasks faster and more efficiently. Some machines are equipped with the capability of performing combined tasks. The Japan Unix Solder Meister Universe S, for example, can perform picking, substrate insertion, and soldering. This robot can combine multiple tasks. One operator can work on four different applications at the same time. With its high capacity, the robot reduces production time and saves workspace. It also facilitates 24-hour production cycles, which is essential for increasing efficiency.
A robotic soldering machine eliminates human error. With minimal operator interaction, the robot can perform the same task in less time. A single operator can supervise two robots and load two components at a time. A robotic soldering machine can also help reduce manufacturing time. Its high-precision and repetitive functionality make it the perfect choice for large-scale production and R&D processes. The dual-tipped robotic soldering machine allows the operator to work on up to four applications at once.
Automatic Soldering Machine
An automatic soldering machine is an automated equipment that assembles electronic parts by heating and melting the components in a controlled manner. It features an index turn table system that automatically applies heat to the coils. This machine can handle the axial and radial terminals and can correct or bend them to eliminate a sharp edge of the solder. These soldering machines are equipped with an air gun and a 60W ferrochrome.
With an X, Y, Z, R and 1 soldering wire feeding system, the machine has a high capacity and can easily handle multiple parts at once. The self-developed software is designed to be user-friendly and works on a windows 7 English operating system. The 12-inch Full Touch LCD screen and 2.4G wireless remote control make the machine easy to use and operate. Other features include an own brand 400W or 600W (optional) high-frequency heating system and a break-tin automatic solder wire feeder. It has an environmentally-friendly design, with RoHS compliance.
An automatic soldering machine saves labor costs by eliminating human error. These machines have many settings that can be easily programmed to fit any task. These include the length and size of the joints to be soldered. The machine will automatically perform according to the program. Another benefit of automatic soldering machines is that they save on material cost because they do not waste any solder paste. It is also possible to program multiple machines by a single expert.
Soldering robotic machines are a popular way to automate the process. They are highly customizable, which means that the user can create their own software for the soldering process. These robots can work with any type of soldering iron, from traditional to lead-free. A number of advantages make them an excellent choice for manufacturers. The robots can handle a variety of different types of electronic parts, including those that are very small, densely positioned, or have very narrow pitches. They can even be programmed to switch between languages, which is a great benefit.
The robot’s software lets you control the soldering process, including temperature, current, and temperature. It also allows you to program different parameters, such as how quickly a specific soldering point will be heated. Moreover, you can set up an automated process by changing the parameters of the soldering machine. You can also customize the time it takes to complete a task and adjust the points that need to be soldered. The software also allows you to set the time when to replace the tip.
Another benefit of soldering robot is that they reduce human error, resulting in less rework. The operator no longer has to watch a screen to determine which joint needs to be soldered. A robotic work station also requires very little operator involvement. For instance, one operator can load and supervise two robots. Furthermore, a robot can be programmed by a single operator, which can eliminate the need for advanced training for every hand solder.
