What is Digital clamp meter?

What is a clamp meter?

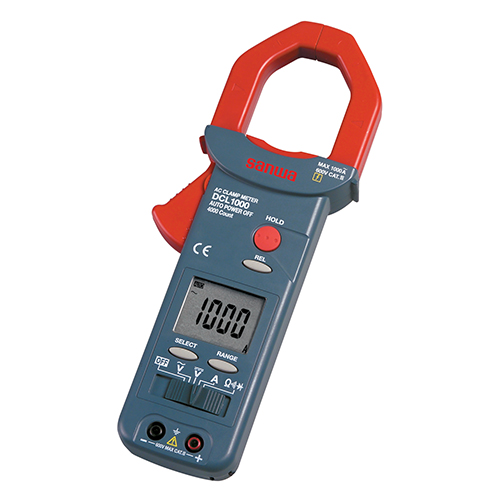

A digital clamp meter is an electric examination device that integrates a fundamental digital multimeter with an existing sensor.

Digital Clamp Meter majors current. Probes measure voltage. Having a hinged jaw incorporated right into an electrical meter allows specialists to digital clamp meter the jaws around a cable, cord or other conductor at any point in an electrical system, after that determine present because circuit without disconnecting/deenergizing it.

Under their plastic mouldings, hard jaws contain ferrite iron and are crafted to discover, focus and also gauge the electromagnetic field being created by existing as it flows through a conductor.

  • Current-sensing jaw.
  • Responsive barrier (to secure fingers from shocks).
  • Hold button: Ices up the screen reading. Reading is launched when button is pushed a second time.
  • Dial (also known as rotating button).
  • Present.
  • Backlight button.
  • Minutes Max button: On first press, display shows maximum input. On subsequent pushes, minimum and typical inputs are revealed. Works in current, voltage and regularity settings.
  • Inrush present button.
  • No button (yellow): Eliminates dc balanced out from dc present measurements. Likewise works as dial’s shift switch to select yellow functions spread around the dial.
  • Jaw launch bar.
  • Alignment marks: To meet precision requirements, a conductor should be lined up with these marks.
  • Common input jack.
  • Volts/ohm input jack.
  • Input for flexible current probe.

Originally created as a single-purpose examination device, modern digital clamp meter provides even more measurement functions, higher accuracy as well as in many cases specialized measurement functions. Today’s digital clamp meter includes a lot of the basic features of a digital multimeter (DMM), such as the ability to measure voltage, connection and also resistance.

Clamp meters have ended up being popular devices mostly for 2 factors:

Safety – Digital clamp meters permit electrical contractors to bypass the old-school technique of cutting into a cable as well as placing a meter’s test leads into the circuit to take an in-line current dimension. The jaws of a clamp meter do not require touching a conductor during a dimension.

Benefit – Throughout a dimension, it is not essential to turn off the circuit lugging existing – a huge increase in efficiency.

Digital Clamp meter is liked for determining high degrees of current. DMMs cannot determine 10 A of current for more than 30 secs without risking damages to the meter.

Digital Clamp meter provides a minimal existing range of 0 A to 100 A Numerous models have an array as much as 600 A. Others go up to 999 A or 1400 A and also some plug-in clamp devices such as the iFlex ® can determine as high as 2500 A.

Digital Clamp meters are made use of on industrial devices, commercial controls, residential/commercial/industrial electric systems, and commercial/industrial HEATING AND COOLING. They are mostly utilized for:

Service: To fix existing systems on an as-needed basis.

Instalment: To fix instalment problems, perform last circuit tests, and also monitor apprentice electricians while mounting electric devices.

Maintenance: To execute set up and preventative maintenance as well as system troubleshooting.

3 sorts of clamp meters exist:

Current transformer clamp meters: measure just alternating current (air conditioner).

Hall Impact clamp meters: determine both rotating current as well as direct current (air conditioning as well as dc).

Adaptable clamp meters: use a Rogowski coil; measure air conditioner only; great for determining in tight areas.
